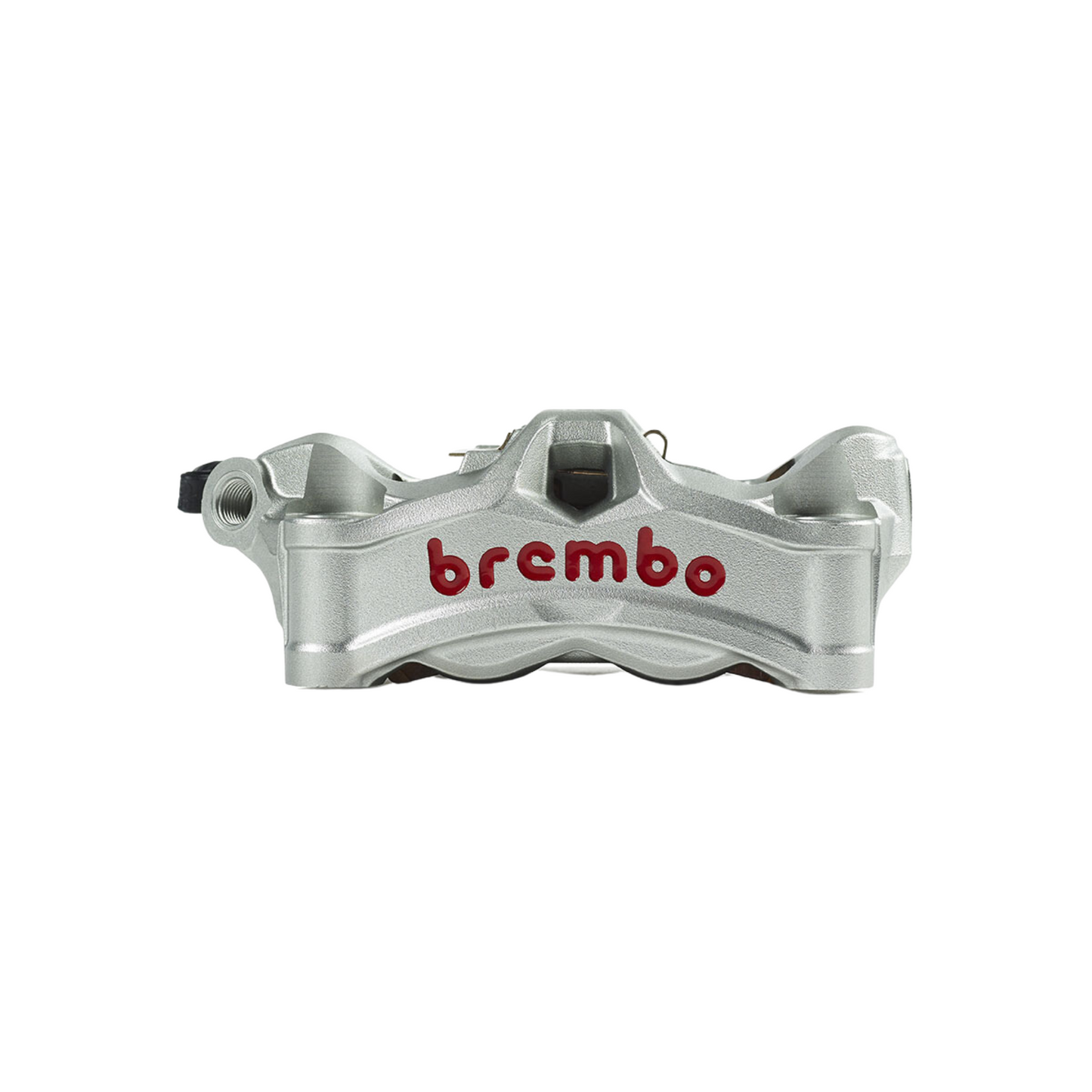

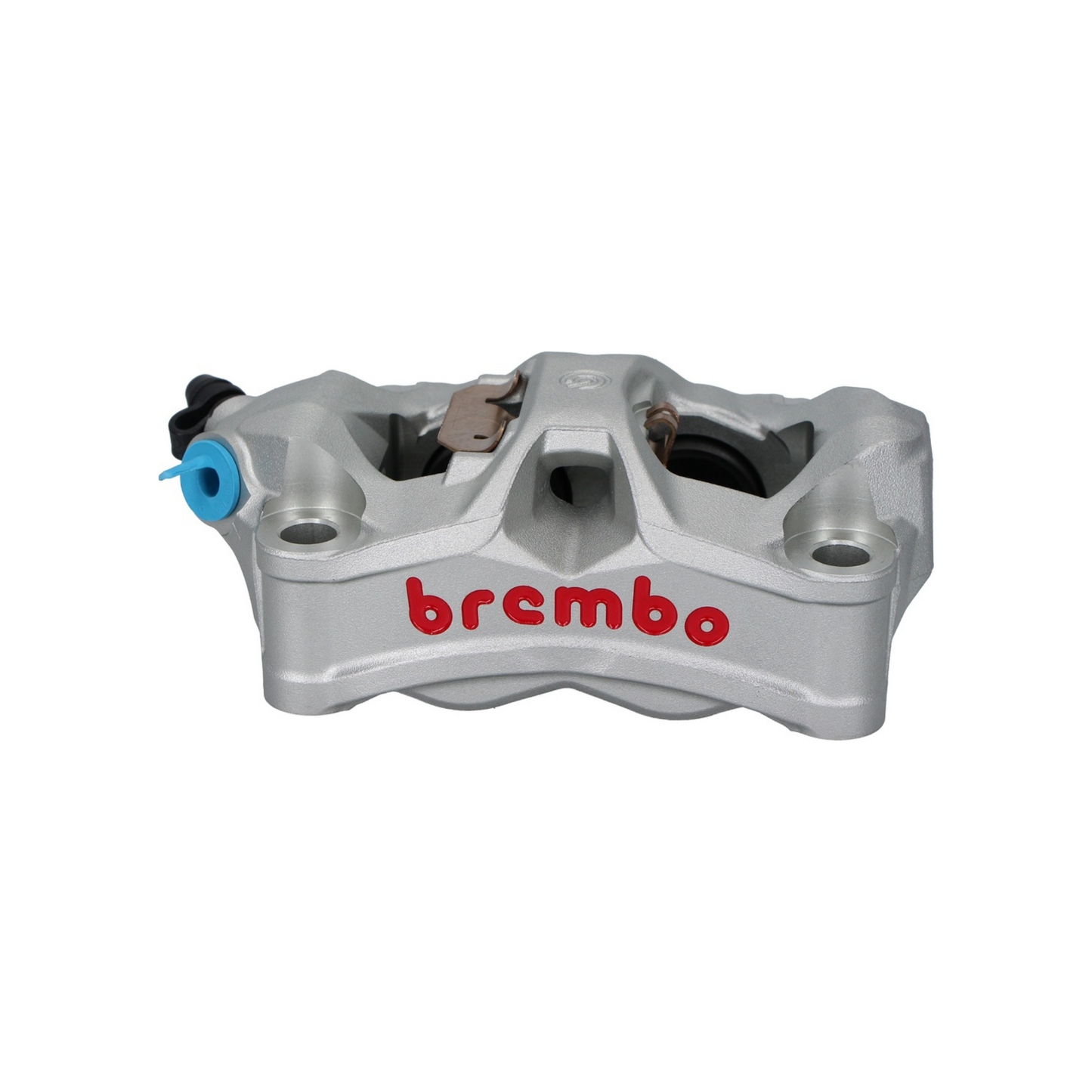

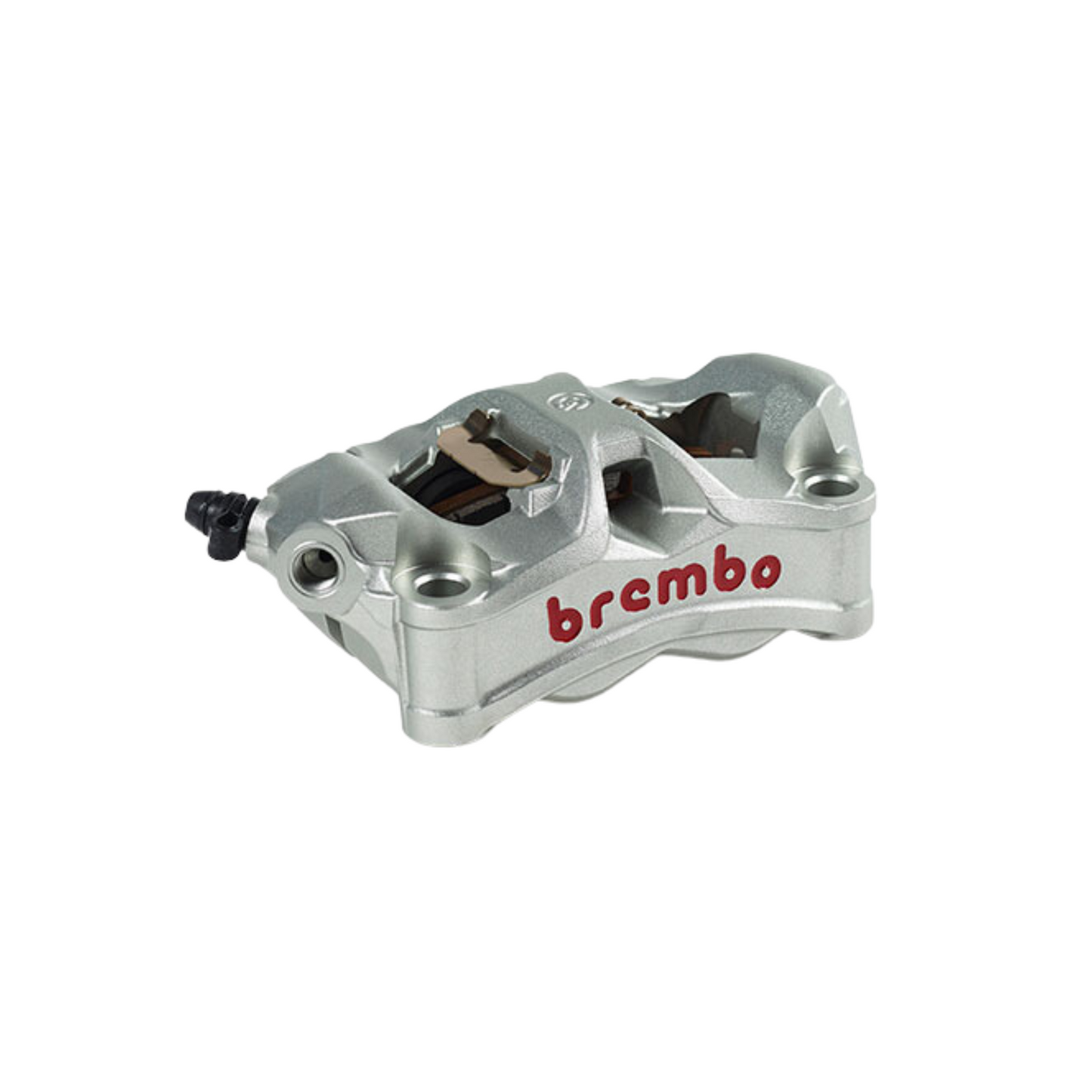

Brembo Stylema 100mm Radial Mount Cast Monobloc Caliper Set

Stylema® is a lightweight, compact, carefully sculpted and high performing caliper that has all the technical features and design of a product destined to outshine the rest and to bring its superiority to the next generation of leading-edge bikes.

TECHNOLOGY

Compared to previous calipers, Stylema® has less volume around the pistons and brake pads, reducing the internal space occupied by brake fluid, to offer a more immediate response.

It has also lost weight, down by about 7%, reducing external dimensions and the height of the mounting caliper, and consequently, the length of the screws (5 mm shorter). The reductions do not affect stiffness, as all key sections have been redefined and the location of the external bridges has changed to allow for a more direct connection to the piston area.

By increasing airflow around the brake pads, Stylema® cools extremely quickly, thanks to an increase in the airflow spaces around the pistons and to an opening that allows air to flow out from the central bridge.

DESIGN

The two ribbed areas are both structural and design features that offer the product a dynamic visual presence and create the perfect space for the Brembo logo.

The air intake, a central feature that joins the superior ribbing through two clean edges, gives the caliper a sharper, more aggressive design.

IMPORTANT: Brembo recommends that the Stylema calipers be used in conjunction with a Brembo 17 RCS / Corsa Corta master cylinder.
